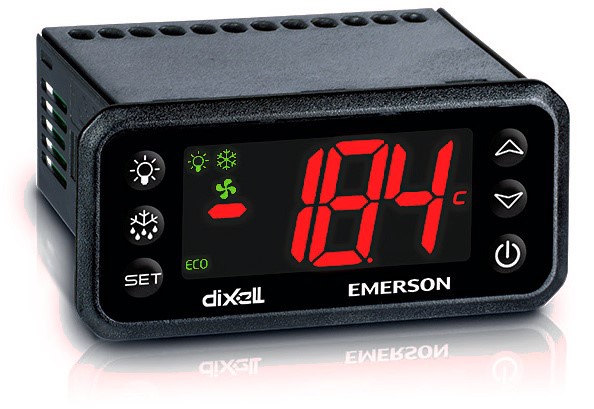

Dixell XR30CH 5N0C1 cooling controller with 230V power supply and 20A relay

One of the best-selling digital thermostats, ideal for simple cooling (with passive defrost option) or heating applications. It is particularly sought after for its favourable price/performance ratio, reliability, sufficient temperature range and accuracy. Deployment as a replacement for a conventional mechanical thermostat means a qualitative leap in control. This version also has a more powerful relay - load capacity 20 A at resistive load, 8 A at inductive load.

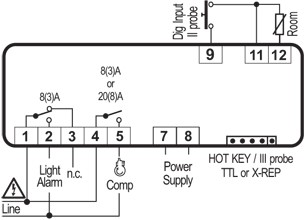

The Dixell XR30CH models are microprocessor-based passive defrost thermostats suitable for normal temperature cooling applications. They are suitable for panel mounting and have dimensions of 32 x 74 mm. They feature two relay outputs, one for compressor control and the other, configurable for light control or alarm signalling. Up to three PTC or NTC temperature sensors can be connected. One for temperature control, the second and the third are optional (connected to the HOT KEY connector and to the dig.input) to signal a condensing temperature alarm or just to display any temperature on the remote display. The units also have a digital input for alarm signalling, for switching on the auxiliary output or for starting defrosting. The digital input can optionally be configured for a fourth temperature sensor. The HOT KEY output can be used to connect the unit (using the external XJ485-CX module) to a Dixell X-WEB monitoring system. Communication is via ModBUS-RTU protocol. The instruments can be fully configured with parameters that can be easily programmed using the keypad or the HOT KEY programming key.
