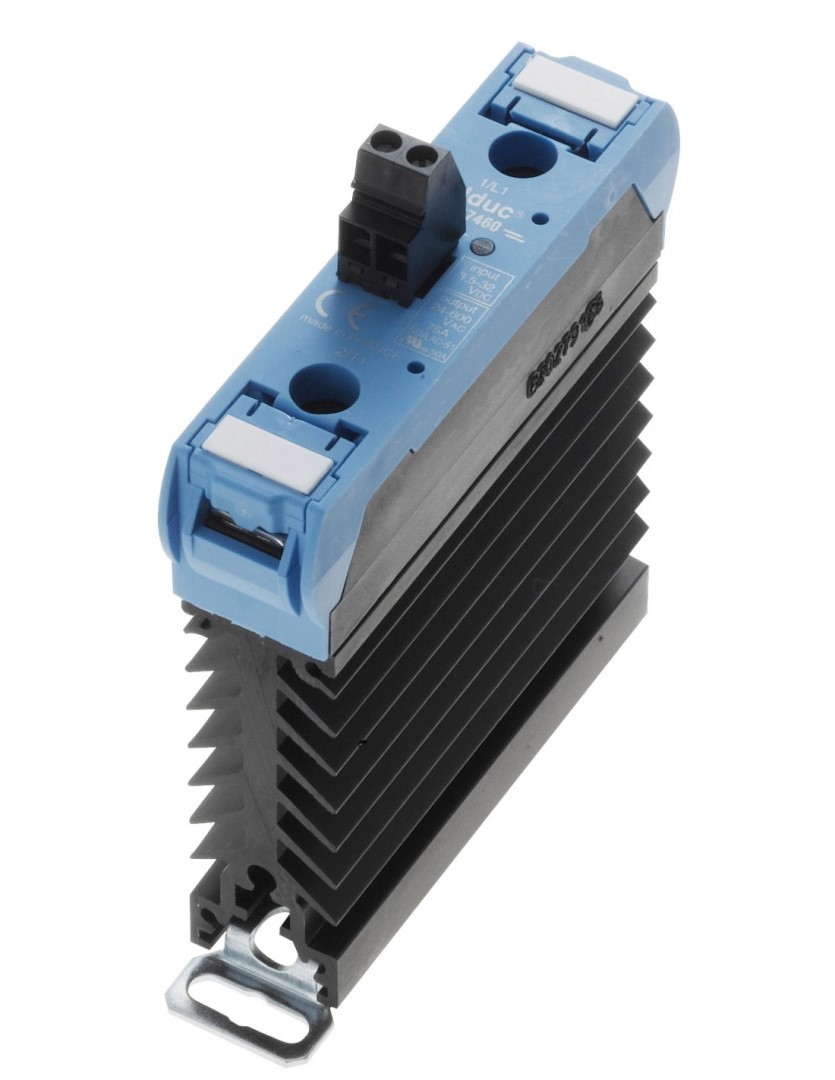

Solid State Relay Celduc SUL963460 for DIN

30A Solid state relay (SSR) on DIN, with integrated heat sink, switched and open at zero, suitable for applications with resistive loads.
Solid State Relay Celduc SUL963460 for DIN
Solid State Relay Celduc SUL963460 for DIN
Solid State Relay Celduc SUL963460 for DIN (1)
Solid State Relay Celduc SUL963460 for DIN (2)
Solid State Relay Celduc SUL963460 for DIN (3)
57,40 EUR 47,44 EUR excl. VAT
In stock
In person in Prague:nowWith a delivery company:tomorrow
Code1P-800-030PNjednofázové 30A /24-400 Vstř, ovl. 3,5-32 Vss, integrovaný chladičProducerCelducWarranty2 years
  • SSR designed for fast load switching/expansion
  • Load switching at zero
  • Switching indication by LED
  • Output short circuit protection
  • Control voltage 3.5...32 Vdc
  • Switching voltage 24...600 Vac
  • Designed for resistive loads
  • Maximum switching current 30 Amps
  • Integrated heat sink
  • DIN rail mounting

Power supplyOther
Control inputDigital signal
Output - relay0x
Output for SSR1x
ProducerCelduc
TECHNICAL PARAMETERS
Control voltage 3,5...32 Vdc
Control current 8.5...43 mA
Switching voltage 24...600 Vac
Maximum switching current 30A
Coverage IP20
Dimensions 90 x 112 x 22.5 mm
Dynamic output impedance at switching max. 7.5 m?
DescriptionTechnical parametersDownload
