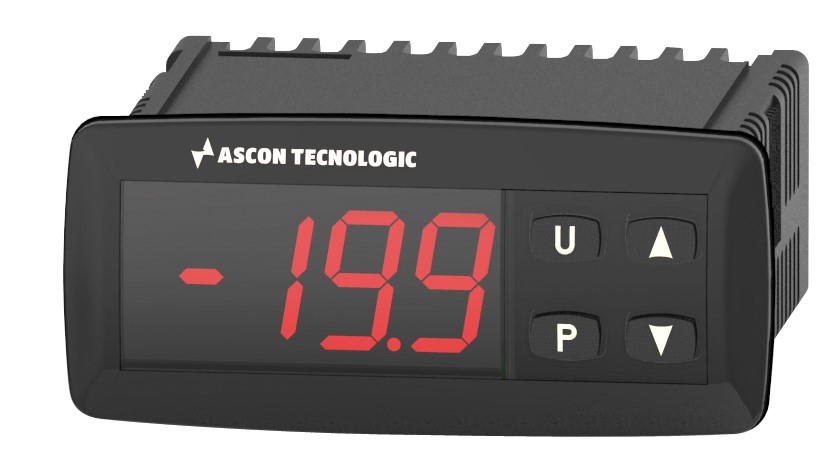

Tecnologic Z31A GS digital panel thermostat with 12 to 24V power supply
size 32x74 mm, 1x PTC/NTC input, power supply 12...24 Vacdc, 1x output relay 16A
In stock
- Digital thermostat for heating or cooling with passive defrost
- One PTC/NTC input sensor
- One 16A SPDT output relay
- Red display
- TTL port
- Replaces Ascon Tecnologic TLZ10, TLZ11, TLZ12, TLE20
| Power supply | 12-24 Vac/dc |
| Design (panel size) | 32 x 74 mm |
| Type of regulation | On/off |
| Control input | Temperature sensor |
| Producer | Ascon Tecnologic |
| Output - relay | 1x |
| Display digit colour | Red |
The Ascon Tecnologic Z31A is a digital thermostat, typically used in heating or cooling equipment using On/Off appliance/compressor control. Evaporator defrost is accomplished by interval stopping of the compressor. The controller has one output relay for compressor control and one input for PTC/NTC sensor. Optionally, it can be equipped with a buzzer for alarm signaling.
| TECHNICAL PARAMETERS | |
|---|---|
| Power supply | 12...24VAC/VDC |
| Consumption | approx. 4 VA |
| Input | 1x PTC (KTY 81-121, 990? @ 25°C) or NTC (103AT-2, 10K? @ 25°C) |
| Output | 1 x SPDT 16(6)A / 250 VAC relay |
| Temperature control | ON/OFF mode |
| Defrost control | interval, by stopping the compressor |
| Measuring range | NTC: -50...109 °C; PTC: -50...150 °C |
| Accuracy | ±0.5 % of range ±1 place |
| Operating conditions | 0 ... 50°C, < 95 RH% |
| Dimensions | 78 x 35 mm, depth 64 mm |
