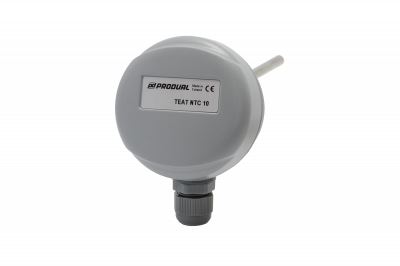

Temperature sensor Produal TEAT NTC 10-C with DIN B head
NTC temperature sensor with DIN B head for liquid measuring sump or air handling. Characteristics of NTC-Carel
Over a week
- For use in air distribution systems or in sumps for measuring the temperature of liquids
- Stem size O 6 x 105mm
- Characteristics of Carel 10k? NTC
- Protection IP54
| Temperature sensor type | NTC |
| Cable length | No cable |
| Measured quantity | Temperature |
| Measuring part of the sensor | Standard |
| Measured temperature range | -30..+80°C, -40..+110°C, -50..+120°C, worse than -30..+80°C |
| Designation | Built-in |
| Producer | Produal |
Produal TEAT NTC 10-C is a range of temperature sensors adapted for measuring heating/cooling water in HVAC systems. These temperature sensors can also be used to measure air temperature in ventilation and air handling systems. The mounting length (stem length) of this variant is 100mm, but mounting lengths of 50, 80, 150, 200, 250, 300, 350 and 450mm can be supplied on request.
The selling price quoted is the retail price, for single sales. If you require multiple pieces, please feel free to contact us for a significantly better price.
| TECHNICAL PARAMETERS | |
|---|---|
| Measuring range | -50 ... +120 °C |
| Accuracy | ± 0.3 °C / 0 °C |
| Time constant | 5 s |
| Stem dimension | O 6 x 105 mm |
| Cable grommet | M16 |
| Output characteristic | NTC - Carel 0°C - 27280? 20°C - 12090? 25°C - 10000? |
| Coverage | IP54 |
| Dimensions | 70 x 95 x 155 mm |
