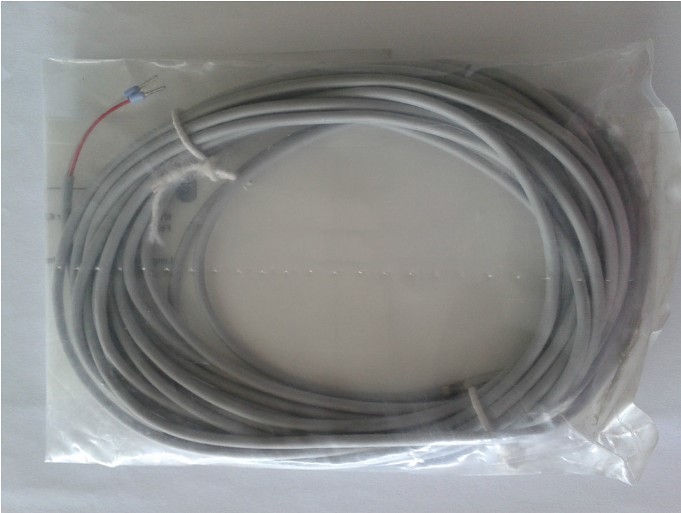

Temperature sensor TP1-NP6 for Emerson EC3

NTC 10kOhm, stem 4 x 30mm, cable length 6m, temperature range -40..+105 °C
Temperature sensor TP1-NP6 for Emerson EC3
Temperature sensor TP1-NP6 for Emerson EC3
Temperature sensor TP1-NP6 for Emerson EC3 (1)
38,95 EUR 32,19 EUR excl. VAT
On request
In person in Prague:on requestWith a delivery company:on request
Code5E-020-100PNobj.č. 804 490, NTC 10kOhm, stonek 4 x 30mm, kabel 6m, rozsah -40..+105°CProducerEmersonWarranty2 years
  • NTC temperature sensor for Emerson EC3 and similar controllers
  • Measuring stem O4 x 30mm
  • 6m cable
  • Alternative designation Emerson ECN-N60
Temperature sensor typeNTC
Cable length6m
Measured quantityTemperature
Measuring part of the sensorStandard
Measured temperature range-30..+80°C, -40..+110°C, worse than -30..+80°C
ProducerEmerson
TECHNICAL PARAMETERS
Sensor type NTC
Measuring range -40..+105°C
Dimensions of the measuring sensor O4 x 30mm, stainless steel
Waterproof yes, IP67
Cable PVC, 6m
Characteristic values 0°C - resistance 27.28 k?
20°C - resistance 12.09 k?
DescriptionTechnical parametersDownload
