Thermometer and hygrometer Ebro EBI 20-TH1-SET with data logger incl. interface
- Measuring range -30 to +70 °C, 0 to 100 % rH
- Accuracy up to +/- 0.5 °C, +/- 3 % rH
- Memory 40,000 measurements (4 measurement modes)
- Measurement interval 1 min to 24 h
- Lithium battery 3 V, CR2450
- Degree of protection IP 52
- Calibration included

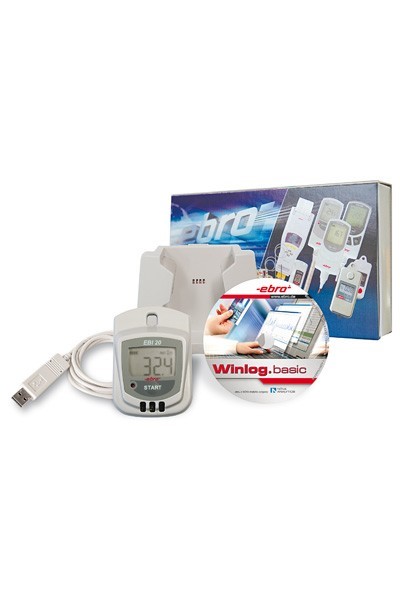

- Kit includes:
- EBI 20-TH1 Temperature/humidity recorder
- Interface for data download
- Software
| Measured quantity | Temperature + humidity |
| Power supply | Battery |
| Designation | Manual |
| Record of measured quantity | Yes |
| Calibration protocol | Yes |
| Producer | Ebro |
The Ebro EBI 20-TH1 temperature and humidity logger allows you to record and store up to 40,000 temperature and humidity readings. It can be used in laboratories, food processing plants, or in the storage and transport of a wide variety of goods that need to document the conditions under which they were manufactured, transported or stored. The measurement and storage of the values comply with EN 12830.
Battery life is up to 24 months with continuous measurements at 15 minute intervals. The battery is user replaceable. Measured data is downloaded from the data logger via the interface included in the delivery. The frequency of saving the measured values is adjustable from 1 minute to 24 hours. The data logger also allows, among other things, automatic recording of temperature and humidity and has a configurable alarm, the exceeding of which is indicated by an LED.
Features:
- Excellent price/performance ratio
- Automatic temperature and humidity recording
- Storage of 40000 readings, retrievable at any time
- No mains connection required
- Programming and evaluation on PC
- LED alarm indication
- Measured minimum/maximum values on display
- User replaceable battery
- FDA 21 Part 11 compliant software
| TECHNICAL PARAMETERS | |
|---|---|
| Temperature measuring range | -30 °C to +70 °C |
| Accuracy - temperature | ± 0.5 °C (-20 °C to +40 °C) ± 0.8°C rest of range |
| Humidity measuring range | 0 to 100% |
| Accuracy - humidity | ± 3% (10 to 90%) |
| Memory | 40,000 measurements (4 measurement modes) |
| Measurement interval | 1 min to 24 h |
| Battery | lithium 3 V, CR2450 |
| Degree of protection | IP52 |
| Calibration | yes, included |
| Other features | Automatic temperature recording LED alarm indication Measured minimum/maximum values on display User replaceable battery |
