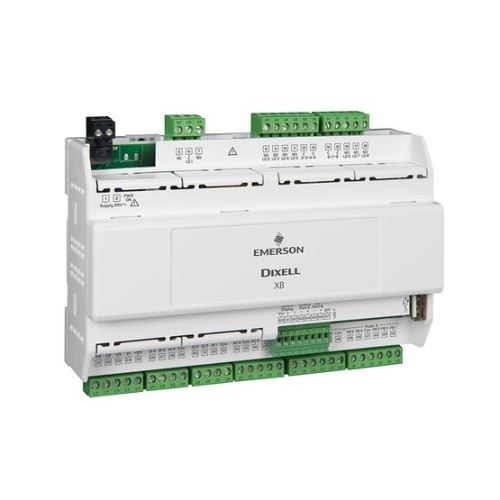

XB887D medium/large volume shock cooling and freezing control unit for 10 DIN rail with VISOTOUCH connection

XB is an innovative range of digital controllers and user terminals with graphic display for optimized control of blast chillers. They are designed to optimise shock cooling, deep freezing and food preservation and excel in configurability and ease of use of shock cooling cycles. A highly customizable user interface and high performance are just some of the features that enable the XB family to fully satisfy even the most demanding customers.

• Controller for shock freezing
• 3 NTC/PTC inputs
• 2 product probe inputs
• 4 outputs (compressor, defrost, fan, alarm)
• RS485 and remote display connection
• XB07PR printer connection to print values directly from the controller as an option

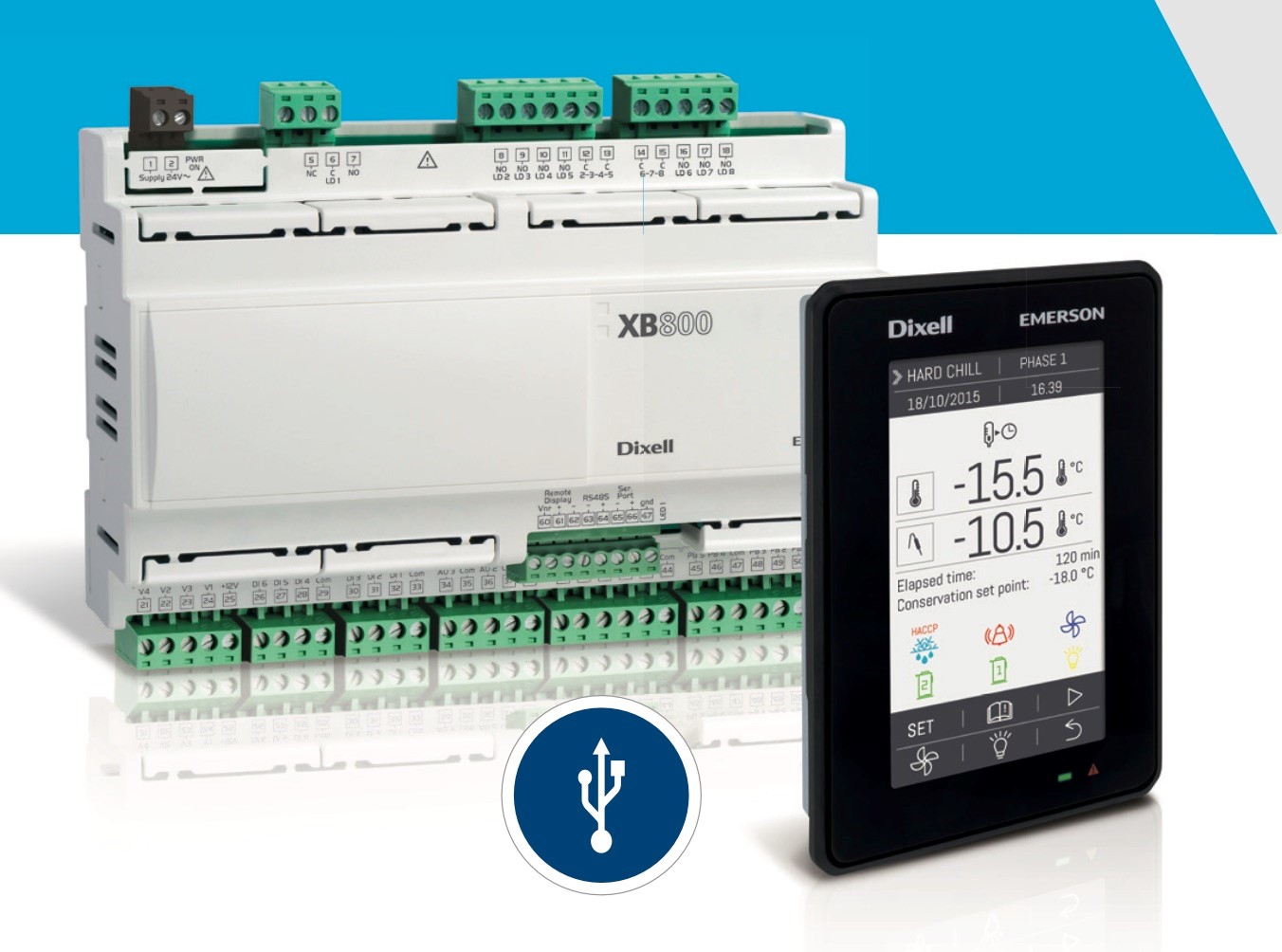

Customizable interface

The customer can choose from 3 highly customizable interfaces (Inox/Polycarbonate LED and touch graphic display). This ensures perfect integration between the aesthetic appearance of the device and the final design of the application.

Customizable shock cooling cycles

Eight predefined and modifiable standard cycles and the possibility to create new cycles allow the user to optimize and reduce working time by ensuring the most suitable type of processing for the product.

Protection and hygiene

The flat surface is easy and quick to clean and guarantees a leading IP65 protection rating for high hygiene.

HACCP compliant

HACCP reports are easily accessible for complete and immediate food control. An internal database saves all events such as high temperature alarms, power failure and maximum cycle time exceeded.

Safety

Special features such as "compressor crankcase heating delay" or minimum/maximum condenser temperature control ensure maximum unit safety in any situation.

User-friendliness and simplicity

Detailed menus and the ability to manage parameters from a PC ensure fast and safe use of the XB series.

Remote access

It is possible to connect control units to XWEB systems and therefore monitor and analyse the operation of the shock freezing system remotely.

Energy saving

Optimised cycle control with the possibility of personalisation guarantees a reduction in energy consumption, thus contributing to cost reduction and saving the environment.
